- Product Name: IP 55 Outdoor Telecom Cabinet
- Protection level: IP55
- Cabinet Lock: Anti-theft Three Point Lock
- Surface Coating: Outdoor Powder Coating
- Cooling: 400W tec air conditioner
- Features:
- Commercial Power Safe/Industrial Commercial Storage/Commercial
Energy Backup
- Applications:
- Telecommunication/Transportation/Renewable Energy/Outdoor Events
Pole Mount Outdoor Telecom Cabinet Technical Parameters:
| Model | DAXIN-6560110 |
| Product Name | Outdoor Telecom Cabinet |
| Manufacturer | Shenzhen Daxin |
| Cabinet Dimension | W650mm*D600mm*H1100mm |
| IP Level | IP54/IP55/IP65 |
| Material | 1.5mm galvanized steel, single wall |
| Mounting Way | Pole mount |
| Cabinet Lock | Anti-theft Three Point Lock |
| Access | Door sensor |
| Battery Shelf | Two shelves |
| Cooling | 400W TEC airconditioner |
| Fan | 4 fans on the top |
| Color | RAL7035 |
| Surface finish | Outdoor Powder Coating |
| Orther accessory | Door sensor |
| LED light |
| Temperature sensor |
About Daxin Outdoor Telecom Cabinet
DAXIN outdoor telecom cabinet which can protect customer’s
equipment’s from damage and extreme weather conditions, vandal ism,
dust, rain, snow and dripping water. The cabinet is an ideal
solution for physical connections of outdoor telecommunication
equipment, transmission equipment, power equipment, monitoring
equipment, lithium batteries and other supporting equipment. Both
active telecom equipment and passive telecom equipment can be
accommodated inside the cabinet. Cabinets are available with
integrated thermal management using air conditioner to control
internal temperatures to protect sensitive equipment.
DAXIN offers IP55/IP66 rated floor standing equipment Cabinets.
Cabinet sizes are Customizable ranging from 9U internal space to
46U special height sizes. External size is 650x650mm with a base of
150mm or 200mm. The cabinet is made with 1.5mm – 2.0mm Galvanized
steel with 20mm thermal insulation. The cabinet has a 200mm base +
side panel, a hinged door with a lock. The rear door is filled with
air conditioning. Cabinet is equipped with 1 sets of 19” rack for
equipment mounting and 2 battery shelves.
Air condition units can be configure depends on the size of cabinet
and heat load requirement, cooling capacity range from 300Watts to
3000Watts. All Cabinets are constructed of Strong anti-theft
ability, embedded door, inner hinge three-point lock, supporting
additional pad lock.
Daxin Support and Services:
Our Outdoor Telecom Cabinets are designed to withstand harsh
environments and provide reliable protection for your
telecommunications equipment. Our technical support team is
available to assist with any product-related questions or issues
you may encounter.
We also offer a range of services to ensure that your cabinets are
properly installed and maintained, including site surveys,
installation support, and preventative maintenance programs. Our
team of experienced technicians will work with you to develop a
customized solution that meets your specific needs and
requirements.
Additionally, we offer training programs to help your staff
understand the capabilities and features of our cabinets, as well
as best practices for maintenance and troubleshooting.

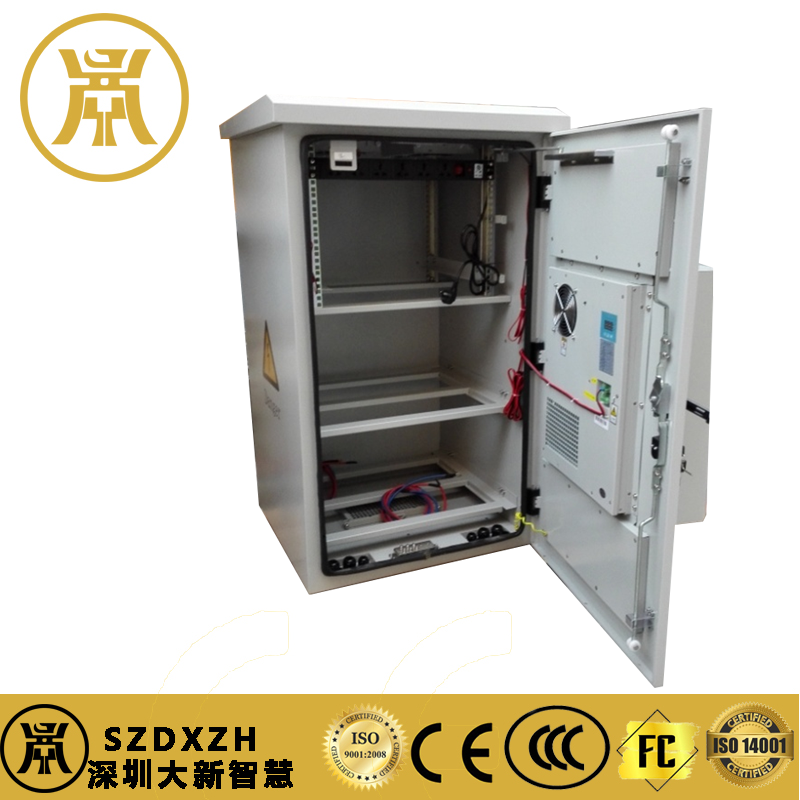

Product Pictures:
Packing and Shipping:
The outdoor telecom cabinet will be packaged in a sturdy cardboard
box with protective foam padding to ensure safe transportation.
The cabinet components will be securely wrapped and separated to
avoid any damage during transit.
The outdoor telecom cabinet will be shipped via a reputable courier
service and will require a signature upon delivery. Shipping costs
will be calculated based on the destination and weight of the
package. Estimated delivery times will be provided upon checkout
and may vary depending on the location.
