Expandable Modular Online UPS With 5.7" LCD 30k Capacity, Back Up
Power Ideal For Data Centers
Product Introduction
This modular UPS is a three-phase, four-phase online,
double-conversion and inverter type uninterruptible power supply.

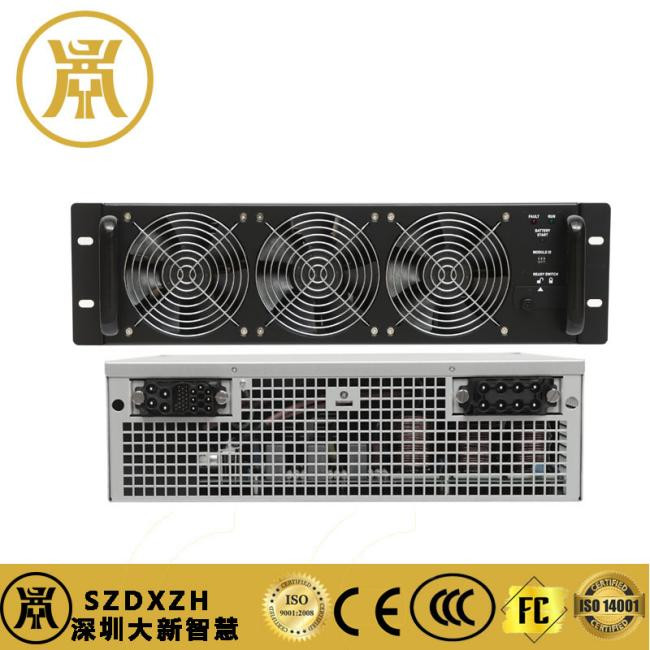

It is designed with STS modules, power modules, and battery modules
for easy maintenance and replacement. The power module features
modular and hot-swap design, providing a cost-effective power
solution that can meet various user requirements. Users can adjust
the number of power modules according to their initial needs and
easily add extra power modules as the power demand increases
without interrupting the system operation.
Product Parameters
Model | RM33-60KVA | RM33-90KVA | RM33-120KVA | RM33-180KVA | RM33-200KVA | RM33-210KVA | RM33-300KVA | RM33-400KVA | RM33-500KVA | RM33-600KVA |
Phase | Three times in, three times out |
Cabinet capacity | 60KW | 90KW | 120KW OR 80K | 180KW OR 120K | 200KW | 210KW | 300KW | 400KW/420KW | 500KW | 600KW |
Battery mode | External battery pack |
Single module capacity | 20K | 30K | 20K/30K | 20K/30K | 20K | 30K | 30K | 50KVA/60KVA(50KW/60KW) |
Number of installable modules | 3 | 3 | 4 | 6 | 10 | 7+1 | 10 | 7+1 | 10 | 10 |
INPUT |
Rated voltage | 3*380VAC/400VAC/415VAC(3PH+N) |
Voltage range | 100%load305~478VAC;<70% |
Rated range | 50/60Hz(Automatic selection) |
Frequency range | 40Hz~70Hz |
Input power factor | 100%load>0.99:50%load；>0.98. |
Current harmonic distortion(THDI) | <3%@100%load |
OUTPUT |
Rated voltage | 3*380VAC/400VAC/415VAC(3PH+N) |
Voltage stability (steady state) | ≤±1%Typical value (balanced load)~≤±2%Typical Value (Unbalanced Load) |
Voltage stability (transient) | ≤±5%Typical Value |
Rated frequency | 50/60Hz |
Frequency range (Synchronous correction range) | 46~54Hz OR 56~64Hz |
Overload capability | 110% 60分钟；120% 10分钟,150% 60秒,>150% 200毫秒 |
Harmonic distortion | ≤1.5%TDH(线性负载)；≤4%TDH(非线性负载) |
efficiency | 最高可达94.5% |
Battery/charging |
Rated voltage | ±216v(12v*36) |
Maximum voltage | ±240v(12v*40) |
Minimum voltage | ±192v(12v*32) |
Float charging voltage | 2.25V/cell |
Maximum charging voltage | 2.25V/cell |
temperature compensation | YES |
Maximum charging current | 8A for 30kw module/6A for 20kw module | 6A | 8A | 8A | 18A(Adjustable) |
Physical performance |
Cabinet size Depth*Width*Height)mm
| 1100*514*763 | 1100*600*1475 | 1100*600*2010 | 1065*600*2000 | 1065*1000*2000 |
Net weight of the cabinet(KG) | 182 | 183.5 | 335 | 437.5 | 625 | 549 | 620 | 331 | 419 | 516 |
Using environment |
Temperature and humidity | Relative humidity 20-90% and 0-40 ℃ (non condensing) |
IP Protection level | IP20 |
Control management |
Intelligence RS-232/USB | SupportWindows2000/2003/XP/Vista/2008,Windows7/8,Linux and MAC |
OptionalSNMP | Power management supports SNMP management and network management |
Safety regulations |
safety regulations | IEC/EN 60950-1; IEC/EN 62040-1 |
Electromagnetic specifications | IEC/EN 62040-2 Category C3 |
Product Advantages
Modular design: Applied to power modules, STS modules, and battery
modules, it enables easy expansion. As the power demand grows,
users can simply add extra power modules without disrupting the
system operation, enhancing system flexibility.
High stability and security: With N + 1 or N + R parallel redundant
application design, the system's stability and security are
significantly increased. It can operate in multiple modes such as
standby, online, battery, bypass, ECO, power - off, and maintenance
bypass (manual bypass), ensuring continuous power supply under
various conditions.
Cost - effective: The modular and hot - swap design of the power
module offers a cost - effective power solution, reducing the
overall cost of the power system.
Easy maintenance: The design of each module allows for quick repair
and replacement, which can effectively lower after - sales
maintenance costs.
High - performance display: The 5.7" LCD graphical design (optional
10 - inch touch LCD screen) provides an intuitive and clear display
of various information, facilitating user operation and monitoring.
Product Applications
This modular UPS is suitable for a wide range of applications,
including but not limited to data centers, communication base
stations, industrial control systems, and commercial buildings. It
can provide stable power support for servers, networking equipment,
industrial machinery, and other electrical devices, ensuring their
normal operation during power outages or unstable power supply
situations.
Product Features
Multiple operation modes: It can operate in standby, online,
battery, bypass, ECO, power - off, and maintenance bypass (manual
bypass) modes, adapting to different power supply scenarios.
Adjustable charging current: The charging current of each module
can be adjusted, with a maximum charging current of up to 8A/6A,
which can better meet the charging requirements of different
batteries.
High - quality power output: The output power factor is 1 (KVA =
KW), and it has excellent voltage stability and low harmonic
distortion. The voltage stability in the steady - state is ≤±1% for
balanced loads and ≤±2% for unbalanced loads, and the harmonic
distortion is ≤1.5% THD for linear loads and ≤4% THD for non -
linear loads, providing high - quality power for electrical
equipment.
