Rack Mounted UPS/Online UPS/Backup Power Supply/Industrial Power
Supply/Energy Storage Power Supply
Feature:
Zero Transfer
time
True Double Conversion Online UPS, Provide most comprehensive
protect mission critical equipment from wide range power quality
issues.
DSP Digital Control Based
Advance DSP base digital control bring high performance of high
input Power factor, low distortion , supply the load with perfect
sine wave AC power supply
Ultra Wide Input Mains range
Strong compatible with ultra with electric environment, stay well
with ultra wide range mains of 60V~145V, 40~70Hz ,dramatically
reduce battery discharge , prolong battery life
Best Loading Capability
Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting,
selectable voltage , perfectly match all kind of application
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and
noise from Genset , provide stable and clean power supply to the
user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power
factor, effectively avoid power pollution , save energy expense for
customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company
with large span component, greatly improve reliability in harsh
environment, Well designed ventilation and conformal coating ,
avoid dust accumulation, improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is
able to be customized to match need of integration of automatic
system or intelligent supervisory system
Specification:
| Model | 1K-LV | 1KS-LV | 2K-LV | 2KS-LV | 3K-LV | 3KS-LV |
| Capacity | VA/W | 1kVA/900W | 2kVA/1.8kW | 3kVA/2.7kW |
| Topology | Double Conversion Online UPS |
| Phase | Single Phase Input Single Phase Output |
AC Mains Input | Wiring | 1 phase 3wires ( L / N+PE) |
| Rated Voltage | 110/115/120/127Vac |
| Voltage Range | Line-Neutral: 55~145VAC |
| Frequency Range | 40Hz-70Hz |
| Input Power Factor | ≥0.99 |
| AC Output | Wiring | 1 phase L/N+PE |
| Output Voltage | 110/115/120/127VAC |
| Voltage Regulation | ±2% |
| Output Frequency | 50/60±4Hz(Sync Mode) / 50/60Hz±0.1%(Free Run) |
| Waveform | Pure Sine Wave |
Distortion (THDV%) | <2%(Linear Load) |
| <7%(None-Linear Load) |
| Over load capability | 100%~105% continuous. 60Sec.@105%~130% Rated Load 10Sec.@130%~150% Rated Load 0.3Sec.@>150%Rated Load |
| Efficiency | Line Mode | 88% | 89% | 90% |
| Battery Mode | 86% | 87% | 88% |
Battery & Charger | Rated Battery Voltage ① | 24VDC Internal | 36VDC External | 48VDC Internal | 72VDC External | 72VDC Internal | 72VDC External |
| Battery Capacity | 12V/7AH x2pcs | External Battery Depends | 12V/7AH X4pcs | External Battery Depends | 12V/7AH X6pcs | External Battery Depends |
| Backup Time | >6mins @ Half Load | >6mins @ Half Load | >6mins @ Half Load |
| Charging Current | standard Model with Internal Battery:1A Long Backup Time Model :4A |
| Optional Configuration to Order | 1. External Battery Module Connector for Standards Model 2. Battery Capacity 7AH/9AH |
| Physical | Chassis Style | RACK - Mounted |
| Rack Dimension W x H x D (mm) | 1KS/2KS/3KS: 438mm(W) x 88mm(2U)(H) x 360mm(D) 1KR/2KR: 438mm(W) x 88mm(2U)(H) x 400mm(D) 3KR: 438mm(W)x88mm(2U)(H)x650mm(D) |
| Weight (kg) | 11.9 | 6.9 | 16.5 | 7.3 | 23.8 | 8.7 |
| HMI | LCD DISPLAY | Input Mains Voltage, Frequency, Load level, Operation Mode, Health
Status |
Standards Communication Interface | 1.RS232 PORT 2.EPO / ROO Port 3.Intelligent Slot 4.USB Card |
| Optional Extension Card | - NMC Card: Support remote monitor the UPS via Smart Phone APP, Web
page, PC Monitor Software , Support Server / NAS shutdown
- CMC MODBUS Card,
- AS400 Relay Card
|
Operating Environment Endurance | Temperature range | -10~50oC |
| Relative Humidity | 0-98%(Non-condensing) |
Acoustics Noise | <55dB @ 1 meters |
UPS Outlook③

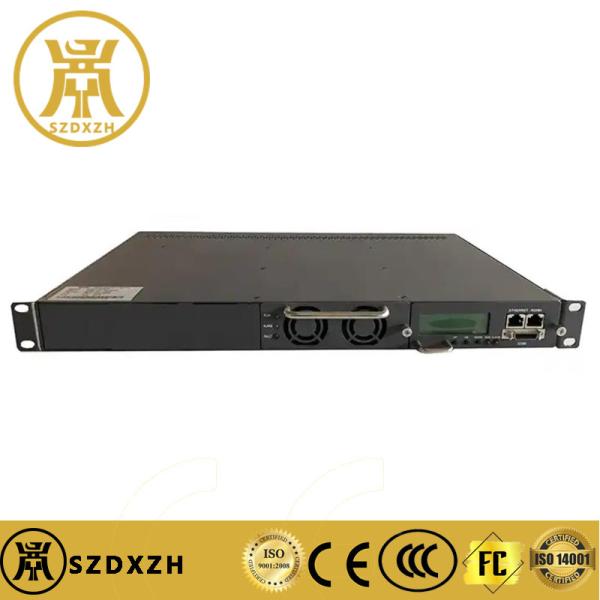

Front View
1K(S)~3K(S) -LV 2U Rack UPS
Rear Panel
1K,2K(S)-LV 2U Rack Mounted UPS Rear Panel
3K(S)-LV 2U Rack Mounted UPS Rear Panel
NOTE:
① Battery Capacity and voltage is open to customization
② Dimension might vary for different bezel
③ The socket and terminal configuration on the rear panel may be
different for countries or regions according to order
④ More parameter customization,please contact sales representative
