Principles of Power System
The system input is sent to the rectifier module input through a
63A/2P circuit breaker. Parallel AC C-level lightning protection is
used for lightning protection at the input end.
The rectifier module operates in parallel, and its DC output is
connected through a busbar to supply two backup battery packs and
DC loads. DC loads are controlled by fuses or air switches,
providing users with on/off control for each load and protection
against overload and short circuits.
Under normal system conditions, various parameters of the rectifier
module and distribution unit are controlled by the monitoring
module and operate according to their predetermined parameters or
user commands. If the mains power fails, the system will switch to
battery power supply. As the battery discharges, the voltage at the
battery end begins to drop. When the battery voltage drops to a
power down voltage point, the monitoring module controls the power
down contactor to operate and cut off the load; When the battery
voltage drops to the battery protection voltage point, the
monitoring module controls the action of the secondary power-off
contactor, cutting off the connection between the power system and
the battery, protecting the battery from excessive discharge. At
this time, the power system will stop working. When the external
mains power is restored and the rectifier module resumes output,
the system will resume normal operation. The monitoring module can
detect and control the working status of the entire power
distribution system. User commands can be issued through the
keyboard on the monitoring module panel, local backend PC, and
remote central control room. The system's working status and
parameters can be displayed on the monitoring module LCD screen,
local backend PC, and remote central control room. The system can
collect various environmental variables, including smoke, door
magnets, water immersion, temperature, and humidity, by configuring
appropriate sensorsReport.

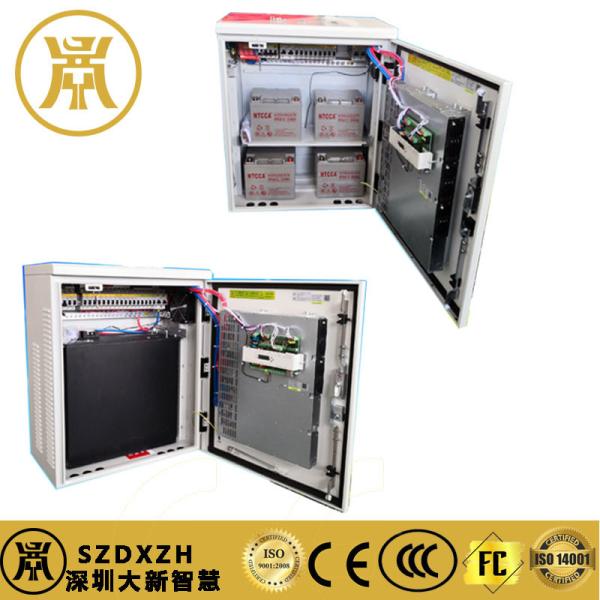

Overall structure
The power supply system plug-in frame (height * width * depth) are
700mm * 580mm * 350mm. It consists of an AC distribution unit, a
monitoring unit, a rectifier module unit, and a DC distribution
unit, and can be installed in floor, wall, pole, and other ways.
Left and right air ducts, module with built-in fan for forced heat
dissipation, IP55, built-in temperature control system. Provide
installation space for one set of 50AH ferroelectric batteries or
four 38AH lead-acid batteries.
Monitoring scheme: Monitor the RS485 ports in the north and south
directions, dry contacts, and battery cell detection (optional) all
led to the monitoring panel
Operation and maintenance method: Pre maintenance, rectifier module
can be hot swappable.
| component | configuration | notes |
| AC distribution unit | Communication on lightning protection | Grade C:20~40KA | |
| Communication input | 63A/2P*2 | The limit breaking ability ICU ≥6kA, the short circuit segmenting
ability Ics ≥6kA |
| Intelligent instrument (optional) | DDS3366P-3Type single-phase three-way electric energy meter | Can detect AC voltage, current, electrical energy, three-way input
switch values, etc. |
| Rectifier module | RM4850*3 | |
| Monitoring unit | SM32 | |
| DC distribution unit | Battery switch | 100A/1P*2 | Ultimate breaking capacity Icu ≥ 20kA and operating short-circuit
breaking capacity Ics ≥ 15kA |
| Power off once | 63A/1P*1;32/1P*2;20/1P*2 | |
| Various user configurations are optional |
| second disconnection | 20A/1P*1;10A/1P*2; | Limit breaking capacity ICU ≥6 ka and running short circuit
breaking capacity ICS ≥6 ka |
| DC lightning protection |
Grade C:10~20KA | Configuration includes lightning protection plate |
| 150AWall mounted power supply system | Dimensions: 700H * 350D * 580W, including temperature control
system | |
Environmental condition
Environmental parameters | Environmental conditions for use | Transportation environmental conditions | Storage environmental conditions | conform to | notes |
| type | parameter | unit | Relevant standards |
| Weather | external temperature | low temperature | ℃ | -40 | -40 | -25 | YD/T1058-2000中 | "-40℃ Can start at full load, |
| high temperature | ℃ | 45 | 70 | 55 | 4.1.1and4.1.2 | "+55~+65℃Linear derating20%. |
| temperature variation | ℃/min | / | 1 | / | ETS300019-2-2T2.3 | |
| humidity | relative humidity | % | 5-90 | 90(40±2℃) | / | YD/T1058-2000中4.1.3 | Short term testing requirements: 0-95%, maximum value of 95%, non
condensing |
| | air pressure | low pressure | Kpa | 86 | 70 | 70 | YD/T1058-2000中4.1.4 | Only apply to modules |
| | high atmospheric pressure | Kpa | 106 | 106 | 106 | |
| altitude | m | ≤4000 | When the altitude exceeds 2000m, for every 100m increase, the
temperature decreases by 0.5 ℃ |
Electrical characteristics
|
| |
| 1 Input characteristics |
| |
| Serial Number | project | technical requirement | unit | notes |
| 1.1 | Input Voltage | 90—300 | Vac | 176-300Vac full load output, 90-175Vac reduced load output |
| 1.2 | Input maximum current | 57 | A | |
| 1.3 | Input Rated Voltage | 220 | Vac | Phase voltage |
| 1.4 | Input voltage frequency | 47—63(The typical value is50/60) | Hz | |
| 1.5 | Input power factor | ≥0.99 | | Full load working state |
| |
| |
| 2 output characteristic |
| |
| Serial Number | project | technical requirement | Unit | notes |
| 2.1 | Output rated voltage | -54 | Vdc | IN220Vac |
| 2.2 | Output voltage range | -42— -58 | Vdc | Adjustable through monitoring (test condition: no load) |
| 2.3 | Output rated current | 150 | A | |
| 2.4 | Output Rating Power | 8.7 | KW | |
| 2.5 | Output ripple and noise | ≤200 | mVp-p | The oscilloscope bandwidth should be20MHz, |
| Probe parallel with 10u+104 capacitor |
| 2.6 | Startup output delay | 3—8 | S | IN 220Vac, |
| 2.7 | Voltage stabilization accuracy | ≤±1% | | |
| 2.8 | Noise index | Broadband clutter | ≤100 | mV | 3.4—150 KHz |
| Sound voltage | ≤30 | mV | 150—30 MHz |
| Telephone balance weight | ≤2 | mV | |
| noise voltage |
| 2.9 | dynamics | overshoot amplitude | △V:≤5 | %Vo | 25%—50%—25% |
| in response to | recovery time | △t:≤500 | µS | 50%—75%—50%load change |
| 2.1 | Unequal current distribution | ≤5% | | Module parallel 50% -100% rated output |
| (Functional modules can work in parallel) |
| 2.11 | temperature coefficient | ±0.02 | %/℃ | |
| 2.12 | output efficiency | ≥95% | | 220Vac/Rated load (typical value), high-efficiency module |
| ≥92% | | 220Vac/Rated load (typical value), universal module |
| ≥87% | | 110VAC/rated load |
| |
| |
| 3 Alarm and Protection Points |
| |
| Serial Number | project | technical requirement | Unit | notes |
| 3.1 | System input overvoltage cut-off | 298±5 | VAC | Automatically recoverable, recovery point290V±5V |
| 3.2 | Module input overvoltage protection | ≥300 | VAC | |
| 3.3 | System input undervoltage cut-off | 80±5 | VAC | 可自动恢复,恢复点136V±5V |
| 3.4 | Module input undervoltage protection | ≤85 | VAC | |
| 3.5 | Input overvoltage alarm | 275 | VAC | Restore the difference to 10V, default value |
| 3.6 | Input undervoltage alarm | 175 | VAC | Restore the difference to 10V, default value |
| 3.7 | Output overvoltage alarm | -58.0V | Vdc | Recovery difference of 0.5V, default value |
| 3.8 | Output undervoltage alarm | -47.0V | Vdc | Recovery difference of 0.5V, default value |
| 3.9 | Output overvoltage protection | 2 | Vdc | Cannot be automatically restored |
| 3.1 | One time power-off protection | -46 | Vdc | |
| 3.11 | Secondary power-off protection | -43.2 | Vdc | |
| 3.12 | Battery powered on | automatic | | greater than50Vdc |
| | | | | |
| Safety regulations and EMC characteristics | | |
| | | | | |
Serial Number | project | Standard (or testing conditions) | notes |
| 1 | Anti electric | Input-- Output | 3000Vac/30mA/1min, | No arcing, no breakdown (system requirement) |
| strength | (Can withstand 50Hz) | During testing, the lightning protection unit, monitoring module,
and rectifier module should be removed, and the relative humidity
should be ≤ 90% when the ambient temperature is 15-35 ℃ |
| | Input - Earth | 1500Vac/30mA/1min, | |
| | (Can withstand 50Hz) | |
| | Input - Earth | 500Vac/30mA/1min, | |
| 2 | isolation | Input-- Output | ≥10MΩ@500Vdc | During testing, remove the lightning protection unit, monitoring
module, and rectifier module, and conduct the test at an ambient
temperature of 15-35 ℃ and a relative humidity of ≤ 90% |
| resistance | Input - Earth | ≥10MΩ@500Vdc |
| Input - Earth | ≥10MΩ@500Vdc |
| 3 | Audio noise | ≤55dB | |
| 4 | Leakage current | If the leakage current of a single module<3.5mA system exceeds
this value, it will be labeled as' large leakage current must be
grounded first ' | |
| 5 | Radiation disturbance emission | CLASS A | EN55022 |
| Conducted harassment emission | CLASS A | EN55022 |
| Current harmonic emission | CLASS A(Rectifier module) | IEC61000-3-2 |
| 6 | Electrostatic discharge immunity | air discharge 8KV, | IEC61000-4-2 |
| Contact discharge6KV, |
| Radiated electromagnetic field immunity | LEVEL 3 | IEC61000-4-3 |
|
| Electrical fast pulse group immunity | LEVEL 4 | IEC61000-4-4 |
| Surge immunity | LEVEL 4 判 | IEC61000-4-5 |
| Conductive immunity | LEVEL 3 | IEC61000-4-6 |
|
| Voltage sag, short-term | Select according to standards | IEC61000-4-29 |
| Interruption and buffering immunity |
| Voltage fluctuation and flicker | PST:＜1.00,PST＜0.65,DC＜3%, | IEC61000-3-3 |
| DMX:＜4%, d(t):＜0.2S(module) |
